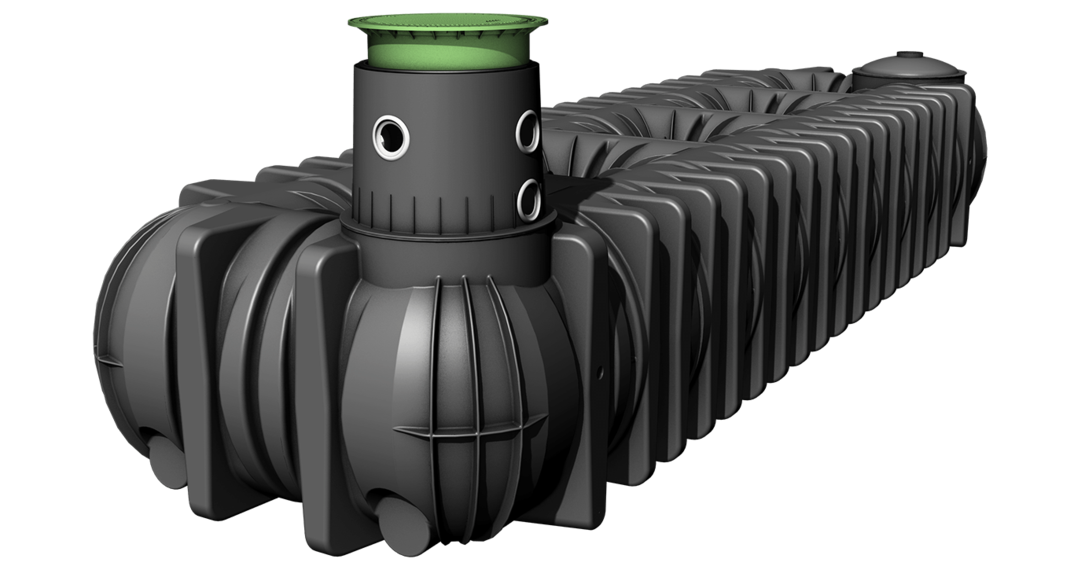

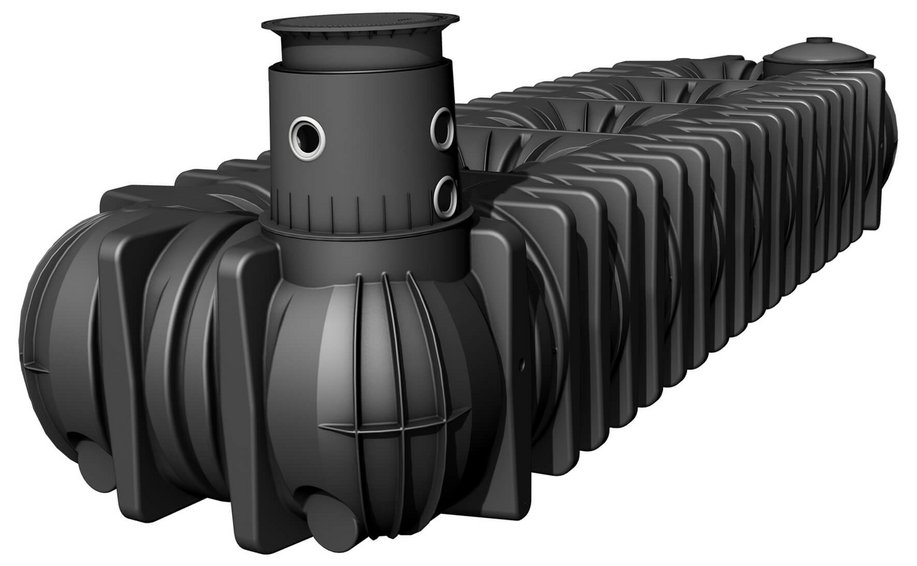

Platin XXL扁平式雨水箱经过特殊设计，可收集雨水。容量从20,000升到65,000升不等。
•延长井筒可旋转，便于和相连管道对接
•可选择加装一个延长井筒
•可承受最高30吨（66,138磅）重载车辆
•连接方式灵活，最大DN 300（12英寸）
•连接端口预装DN 150（6英寸）密封
•水箱高度仅125厘米（4英尺1英寸）
•内置高质量DN150（6英寸）过滤器
•延长井筒开口采用不锈钢框架，保证元件契合，精准安装
•延长井筒最大DN 300，其连接口最大DN 200（8英寸）
我们的优势
每一个细节都经过深思熟虑

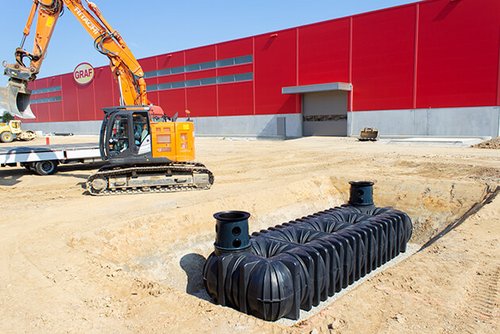

The minimal installation depth saves you time and money during installation.

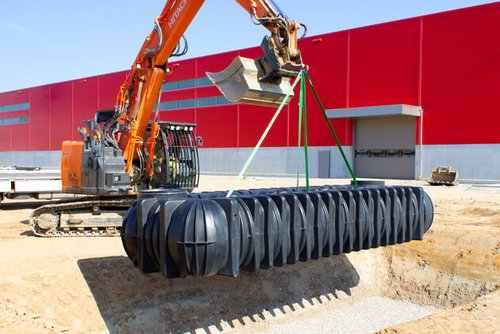

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

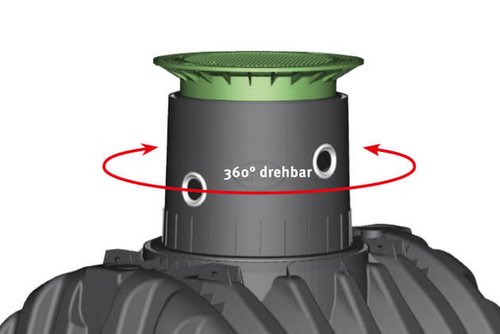

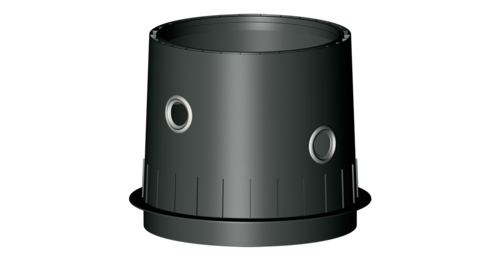

Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.

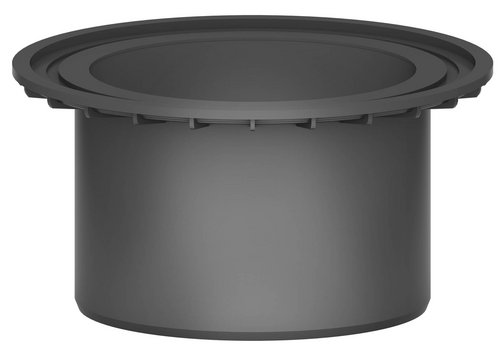

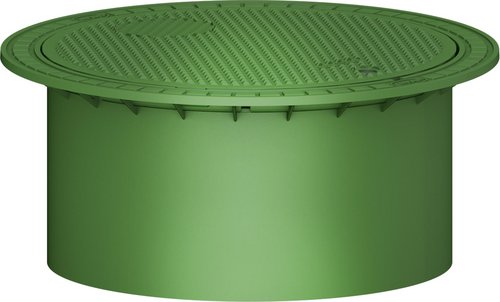

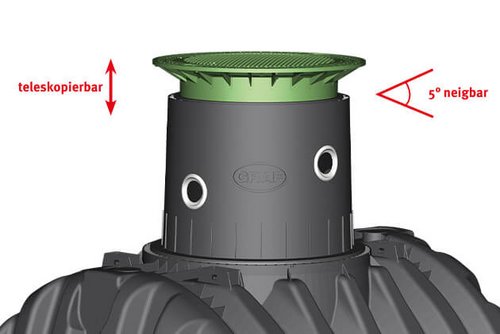

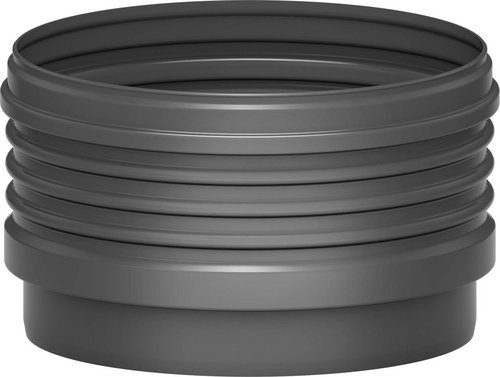

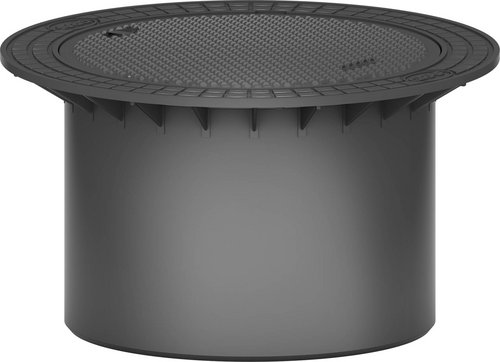

The GRAF telescopic dome shafts are continuously height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

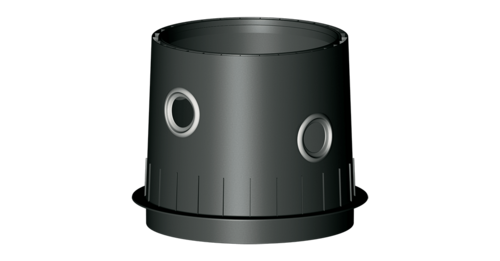

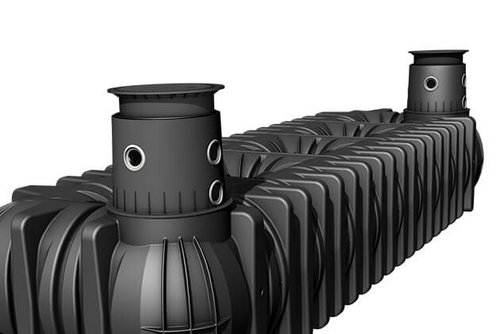

The GRAF XXL tank can optionally be equipped with a second tank dome.

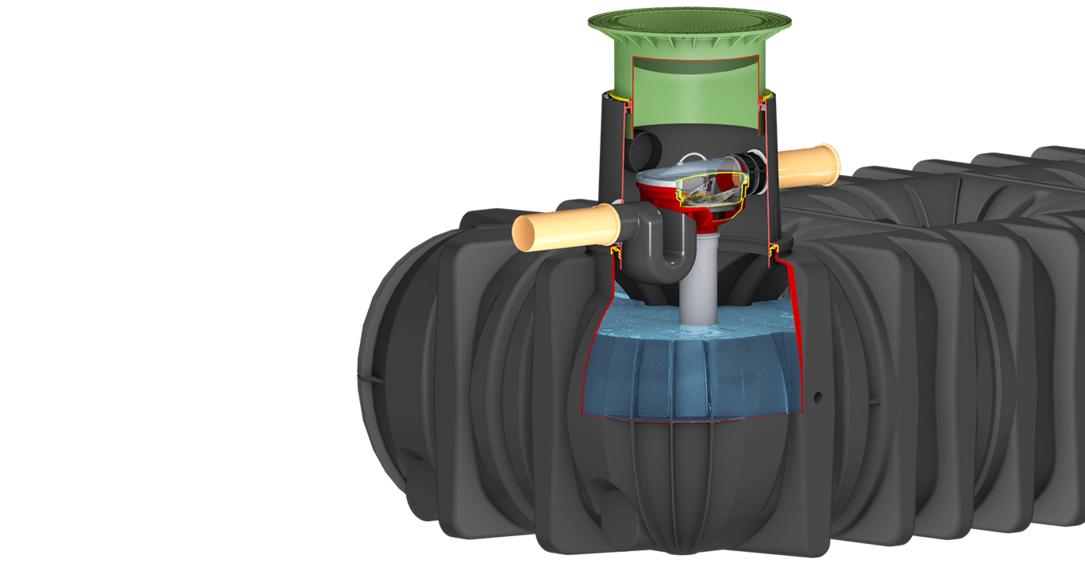

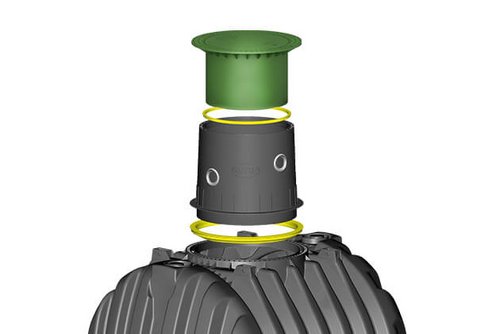

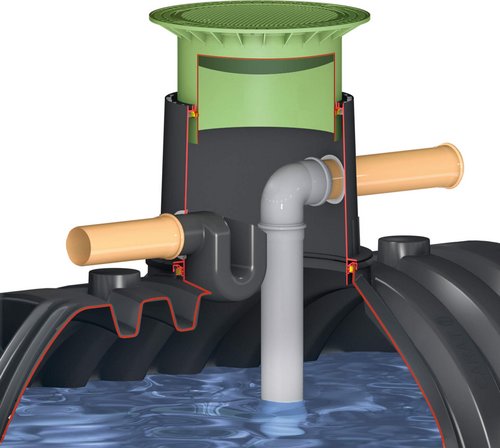

The ingress of seepage water can impair the water quality. GRAF tank and filter solutions are therefore sealed up to the top edge of the ground.

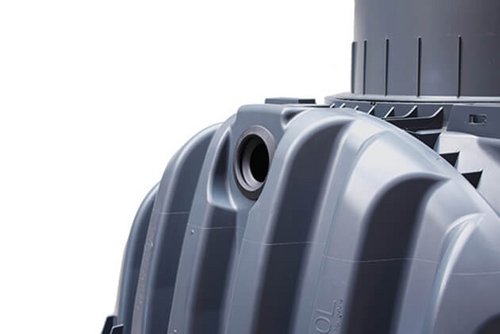

With GRAF tank systems, the connection seals are already pre-drilled and lip seals are pre-assembled. This saves time and therefore costs during installation.

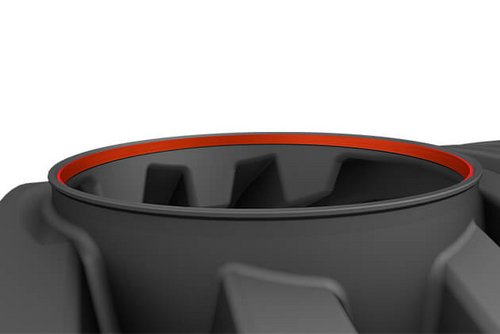

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

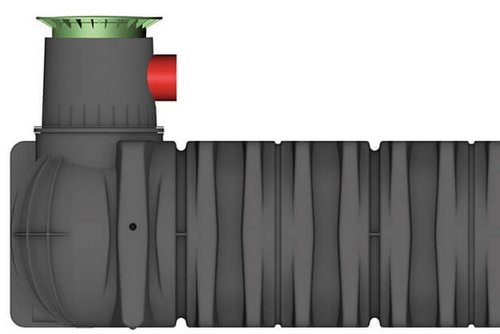

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.
